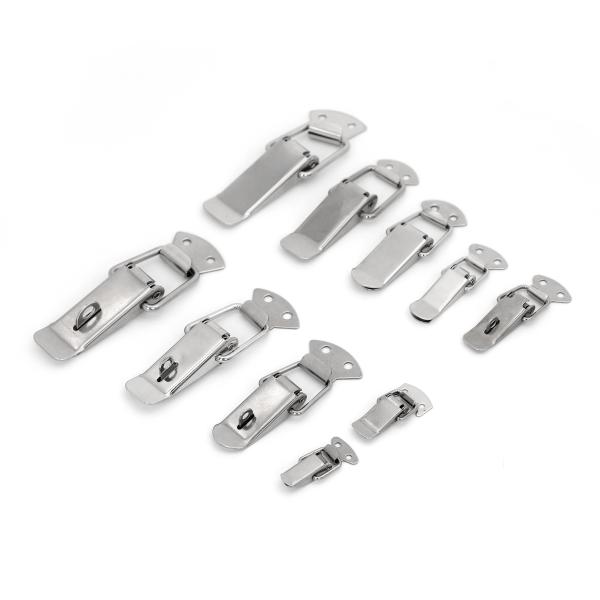

DK001 Sus304 Sus316 Stainless Steel Toggle Latch For Industrial Machinery
Product introduction of stainless steel toggle latch
The stainless steel toggle latch is assembled by stamping and forming 304 stainless steel plate through several procedures. Mainly used in stainless steel products industry, instrument industry, mechanical and electrical equipment industry, packaging industry, high-tech industry, logistics industry, etc.
Stainless steel toggle latch types mainly include: stainless steel flat mouth toggle latch, heavy military toggle latch, long toggle latch, spring loaded toggle latch, adjustment stainless steel toggle latch, carriage toggle latch, bridge toggle latch, luggage toggle latch, self-locking toggle latch.
Product parameters
| Item No. | Material | Surface | Weight | Length | Width | Thickness |
| DK001 | Iron/ss201/ss304 | Nickel-plated/Polished | 86g | 105mm | 38.6mm | 1.5mm |
| DK002 | Iron/ss201/ss304 | Nickel-plated/Polished | 86g | 105mm | 38.6mm | 1.5mm |
| DK003 | Iron/ss201/ss304 | Nickel-plated/Polished | 55g | 97mm | 31.2mm | 1.5mm |
| DK004 | Iron/ss201/ss304 | Nickel-plated/Polished | 52g | 97mm | 31.2mm | 1.5mm |
| DK005 | Iron/ss201/ss304 | Nickel-plated/Polished | 34g | 75mm | 26mm | 1.5mm |
| DK006 | Iron/ss201/ss304 | Nickel-plated/Polished | 35g | 75mm | 26mm | 1.5mm |
| DK007 | Iron/ss201/ss304 | Nickel-plated/Polished | 18g | 61mm | 21.6mm | 1.5mm |
| DK008 | Iron/ss201/ss304 | Nickel-plated/Polished | 19g | 61mm | 21.6mm | 1.5mm |
| DK009 | Iron/ss201/ss304 | Nickel-plated/Polished | 8g | 46.4mm | 19mm | 1.5mm |
| DK010 | Iron/ss201/ss304 | Nickel-plated/Polished | 11g | 47.9mm | 22mm | 1.5mm |
Material and finish of stainless steel toggle latch
1.Steel plate material
According to the use environment and pressure, you should choose different types of steel such as 201 stainless steel, 304 stainless steel, 316 stainless steel.
2.Surface treatment of stainless steel toggle latch
For stainless steel products, we will carry out polishing treatment. Polishing can reduce the roughness of the workpiece surface, making it brighter and smoother.

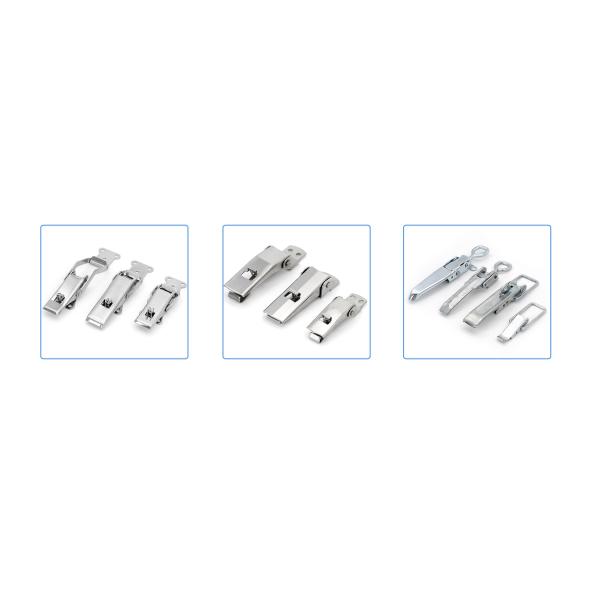

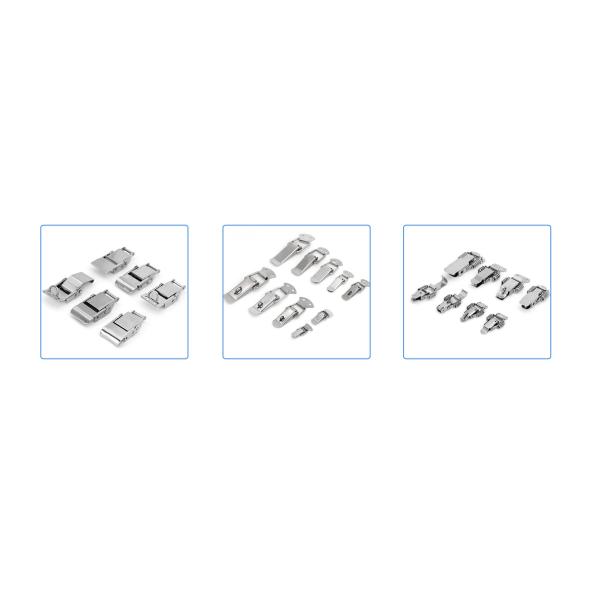

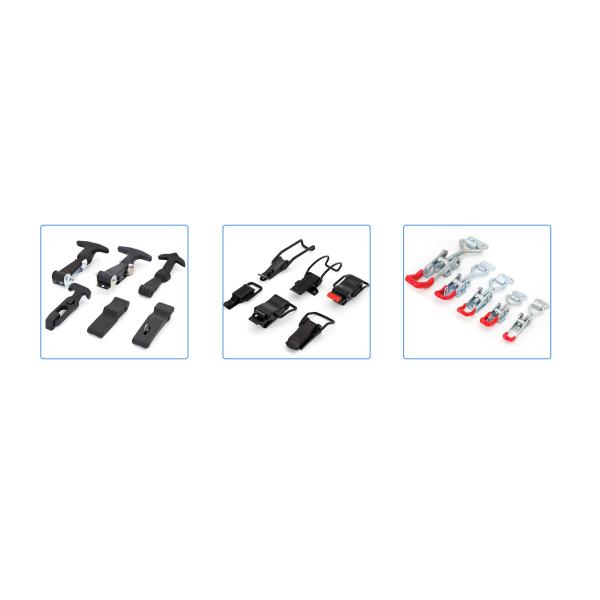

Stainless steel toggle latch catalog
